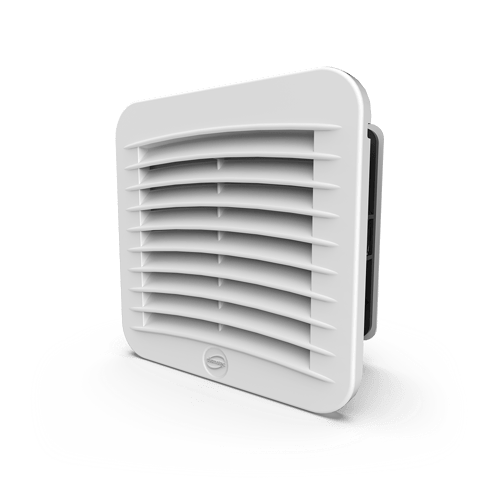

Kryos GS Filter Fans for Electrical Enclosures
Kryos³ GS filters fans, for the ventilation of electrical enclosures, are the optimal solution when the ambient temperature is lower than the temperature inside the cabinet, and can be installed, thanks to their reduced depth, on various types of panels.
With a new modern design, Kryos³ filter fans offer the same wide range of sizes and power supplies as previous generations, allowing you to choose the most suitable solution for your installation and geographical area.
- Sizes 10, 15, 20, 25, 30
- Air flow rate from 35 m³/h to 850 m³/h
- Power supply available in 230Vac and 115Vac, 24Vdc, 400/460Vac. On request 12Vdc and 48Vdc
- Colouring standard RAL7035. RAL9005 on request
- Protection Degree IP54 / Type12
- Protection Degree IP55 with additional filter mat
- Protection Degree IP56 with hose-proof hood
.png?width=401&height=132&name=Screenshot%20(38).png)
User Friendly Installation
Easy to install without the use of tools or screws, thanks to the clips on the rear grille, which provide an adequate seal between the grille and the cabinet. The filter fans can be installed on different types of enclosures with thicknesses between 0.8 and 3 mm, for CNx10 between 0.8 and 2 mm. Fixing with screws is possible for larger thicknesses; each article is provided with embossments on the rear grille.
Easy to install without the use of tools or screws, thanks to the clips on the rear grille, which provide an adequate seal between the grille and the cabinet. The filter fans can be installed on different types of enclosures with thicknesses between 0.8 and 3 mm, for CNx10 between 0.8 and 2 mm. Fixing with screws is possible for larger thicknesses; each article is provided with embossments on the rear grille.
Web Select Tool
Software for designing industrial air conditioning systems
Designing your own air conditioning system for industrial applications can be particularly complex, due to the many variables that need to be considered in the choice. To enable you to start planning independently, We have developed Web Select, a web-based software for sizing electrical panels that will guide you in choosing the best conditioning solution for your applications.
To gain access to the Cosmotec Web Select tool, simply click the button below to request your login details.
